Super power in your pocket

The Best-Value
RISC-V Mini Server for Builders

The NodeX32 Mini delivers a complete 32-core RISC-V desktop platform in a compact form factor — built to bring RISC-V out of the dev-board era and into real workloads: homelab, self-hosted services, edge compute, and native RISC-V development.

Powered by a 32-core, RVA23-profile RISC-V processor running up to 2.0 GHz, it offers the core density, I/O, and Linux readiness to run containers, services, and development environments natively on RISC-V — the easiest way to start building on RISC-V.

  • 32-core RISC-V processor — RVA23-profile cores up to 2.0 GHz, TDP under 150 W
  • Up to 128 GB DDR4-3200 — 8-channel memory, optional ECC, via 2-4× SODIMM
  • Developer-ready I/O — 2× RJ45, PCIe Gen4 for dev & light expansion, 2-4× M.2 NVMe, USB 3.2, HDMI
  • Linux-ready — mainline kernel support, RVA23 software stack under active development

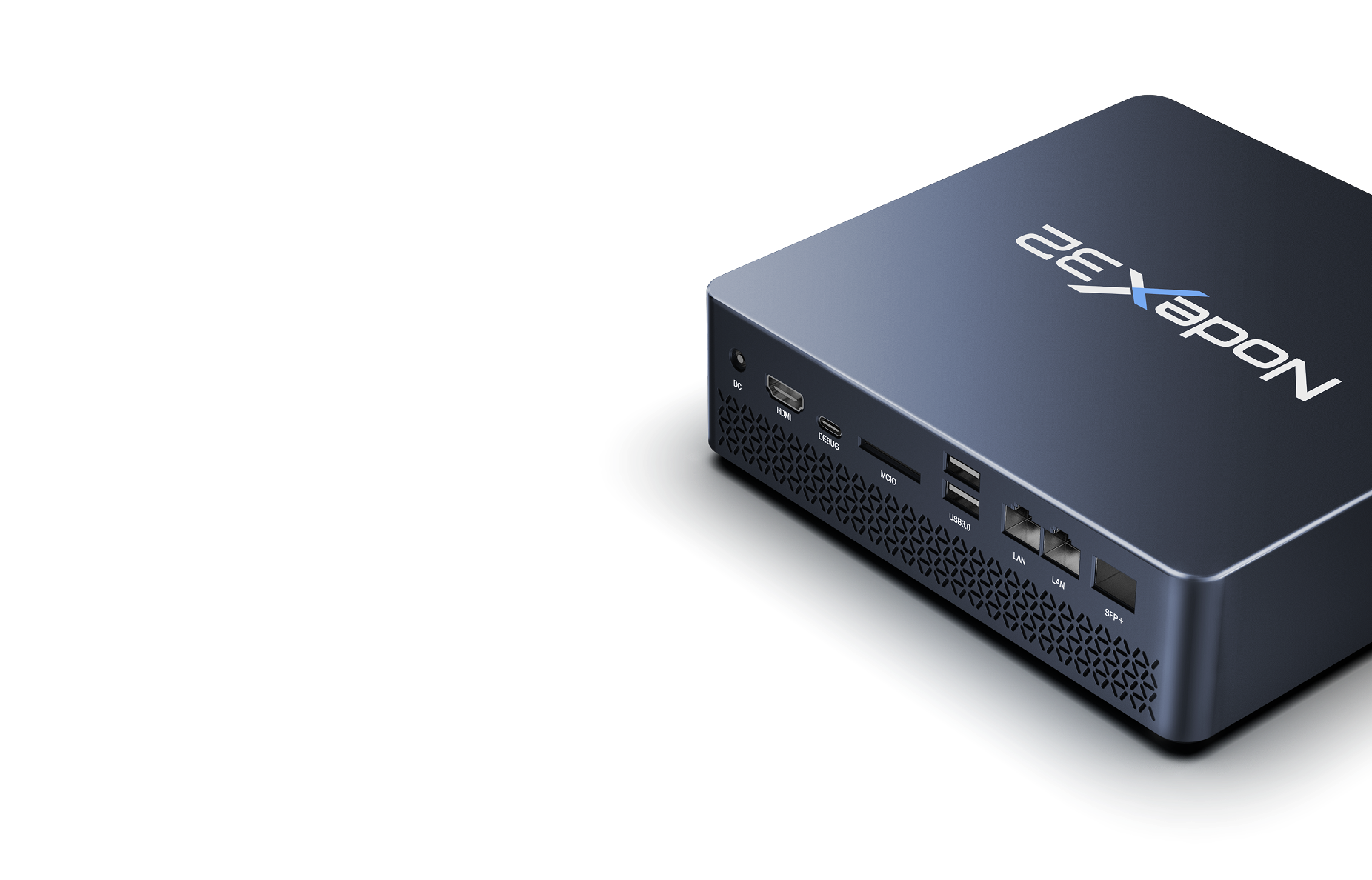

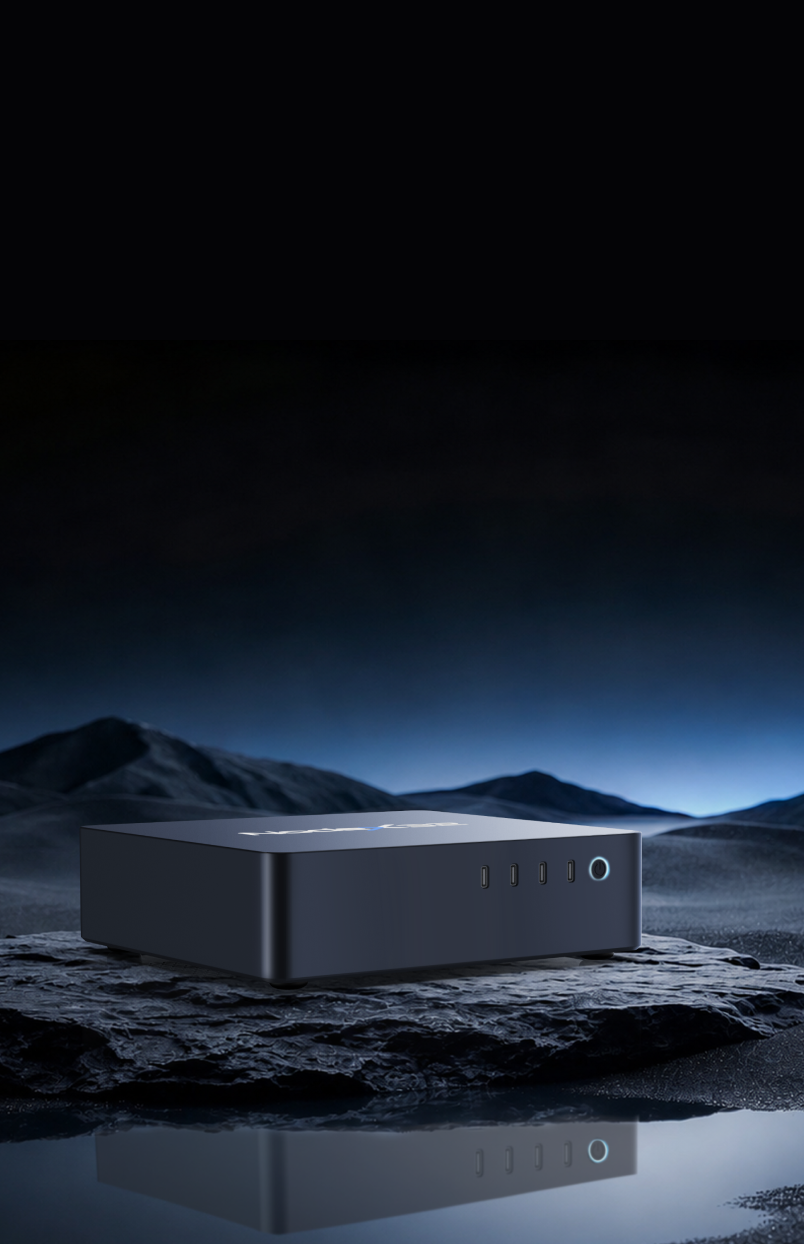

NodeX32 Mini PC

32 Cores

RVA23 RISC-V

Up to 128 GB

ECC 8-Channel DDR4

Dual 2.5GbE

Wired Networking

PCIe Gen4

Dev & Light Expansion

Product Features

SoC

32-core RISC-V SoC featuring:

  • 32× RISC-V application cores, RVA23 profile
  • Up to 2.0 GHz, 32 threads
  • TDP < 150 W
  • 8-channel DDR4-3200 memory controller, ECC capable
  • PCIe Gen4 connectivity
  • Single-socket (1S) configuration
  • FC-BGA package

Networking

  • 2× RJ45 Ethernet ports
  • 1× SFP+ cage
  • 1× M.2 2230 Key E for Wi-Fi / Bluetooth module
  • 1× dedicated management NIC (optional)

Expansion & I/O

Expansion:

  • 1× PCIe 4.0 ×16 slot
  • 1× PCIe 4.0 ×8 slot(×4 electrical)
  • 2-4× M.2 NVMe slots

Front / Rear I/O:

  • 3-4× USB 3.2 Type-A
  • 1× USB Type-C
  • 1× USB Type-C for debug (UART/JTAG)
  • 1× HDMI

Power & Management:

  • 1× DC input / 1× 240 W USB Type-C input
  • Remote management support
  • Tool-less, serviceable chassis

Memory & Storage

  • 2-4× DDR4 SODIMM slots, up to 128 GB @ 3200 MT/s
  • Optional ECC support
  • 2-4× M.2 NVMe SSD slots (PCIe Gen4)
  • 1× SATA connector for legacy storage

Help shape NodeX32 Mini Server/Sign Up!

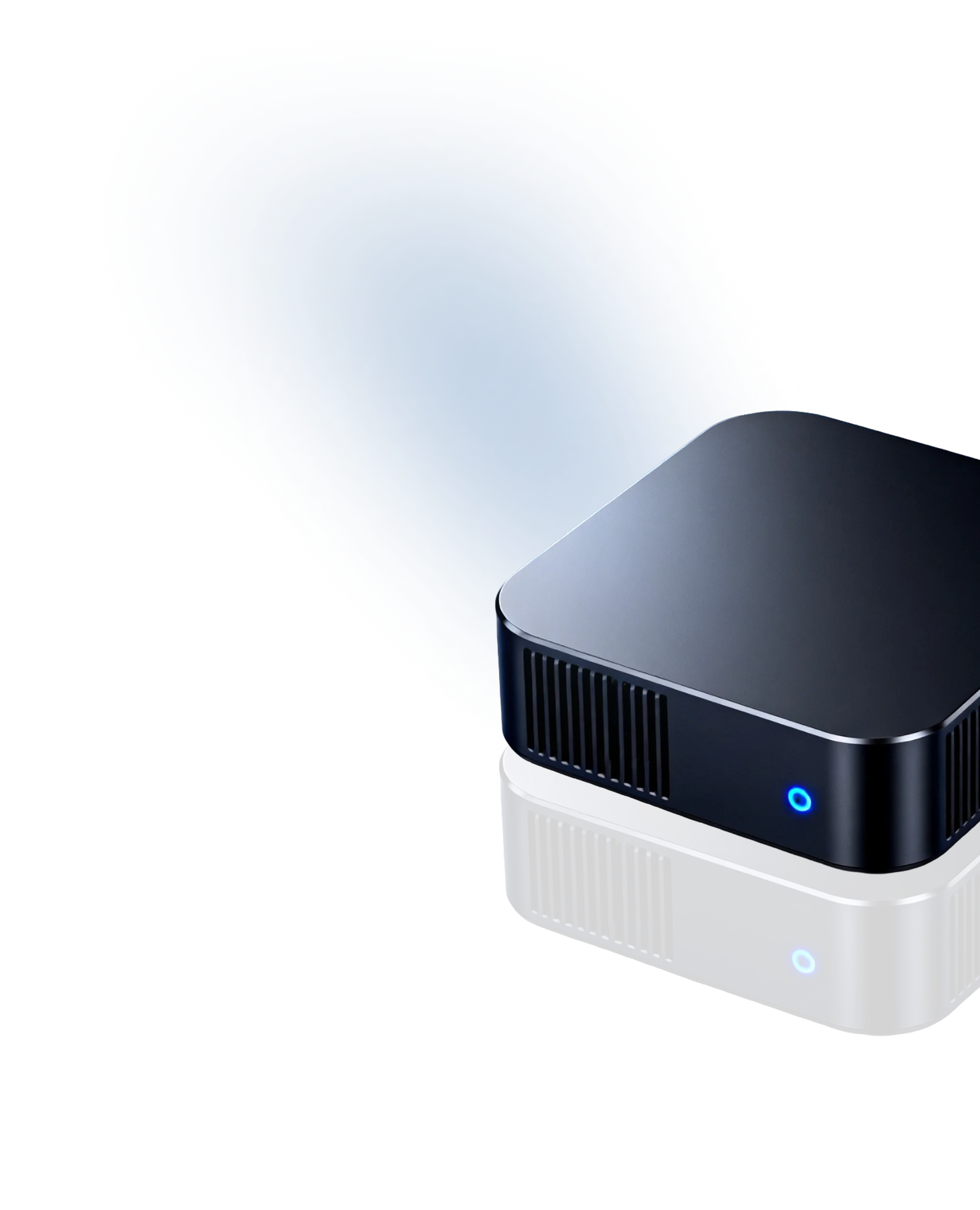

NodeX32 Mini PC

Your use cases and concerns guide our priorities. Tell us what matters to you in the questions below — we'll use that to shape the specs, software, and features. Your feedback matters!
